Product Details

SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

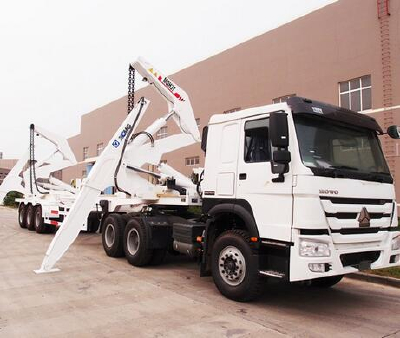

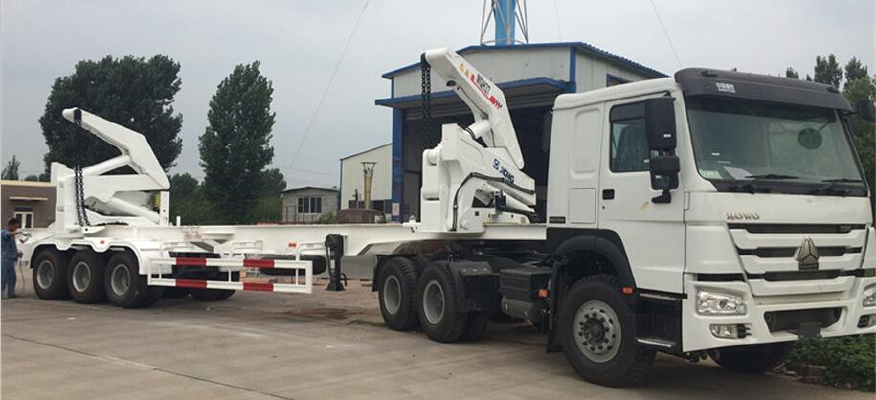

Container Self-loading Trailer Specification

Standard Configurations:
1. Dimension	14780 x 2490 x 4000 mm
2. Loading dimension	20ft, 40ft
3. Curb weight	9500 kg
4. Payload	15000 kg
5. Gross weight	24500 kg
6. Truck frame form	Frameless body
7. Axles	FUWA 13T, 3 units
8. Suspension	Mechanical suspension
9. Rim	8.5-22.5, 12 units
10. Tire	Double star, 11.00-22.5, 12 units
11. Landing gear	JOST 25T
12. Wheelbase	8600 1350 1350 mm
13. Wheelspan	1830 mm
14. ABS	WABCO
15. Saddle payload	13400 kg
16. Max lifting weight	15000 - 36000 kg, the distal leg is 2.1 - 3.5 m from the center chassis
17. Working pressure	25
18. Rear overhang	1970 mm
