Product Details
- Size: 11373x4130x4650mm
- Place of Origin: China
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: CRS450C5
- Weight: 45000.000 kg

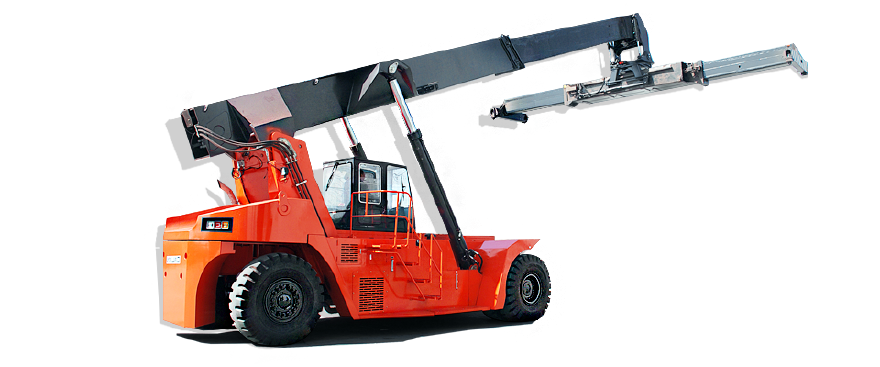

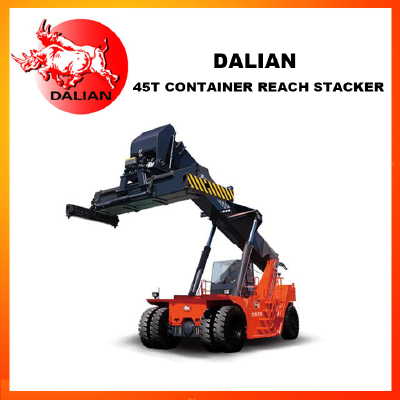

45 Ton Container Reach Stacker For sale
45 ton general forklift, container forklift, reach stacker and so on, totally 10 major categories, more than 30 series, more than 300 kinds of different specifications. Middle and heavy forklift as our leading products. Domestic sales outlets throughout our country and we exported covered more than one hundred countries.
| ITEM | unit | data | |||
| Rated capacity | Rront distance | 1900mm | 5floor | kg | 40,000 |
| 1900mm | 4floor | 45,000 | |||
| 3850mm | 4floor | 31,000 | |||
| 6350mm | 3floor | 15,000 | |||
| Max. lift height | mm | 15,100 | |||
| Min. ground clearance | mm | 400 | |||
| Min. turning radius | mm | 8,200 | |||
| Lifting speed （ unload/loaded ） | mm/s | 430/231 | |||
| Lowering speed （ unload/loaded ） | mm/s | 300/250 | |||
| Travelling speed （ unload ） | f/r | 1-speed | km/h | 3.5/3.5 | |
| 2-speed | 8.5/8.5 | ||||
| 3-speed | 15/15 | ||||
| 4-speed | 25\25 | ||||
| Max.gradiend （ unload/loaded ） | % | 30/15 | |||
| Brake distance | unload 20km/h | m | ≤7 | ||
| load 20km/h | m | ≤3.5 | |||
| Boom | max angle | deg | 60 | ||
| max. spread | mm | 6800 | |||
| SERVICE WEIGHT | kg | 73000 | |||
| Tyre | model | front | pneumatic | 18.00-25-40pr | |
| rear | pneumatic | 18.00-25-40pr | |||
| air pressure | front | mpa | 0.9 | ||
| rear | mpa | 0.9 | |||
| Engine | type | qsm11t3 c335 | |||
| manufacturer | cummins usa | ||||
| displacement | cc | 10800 | |||
| rated output | kw/rpm | 250/2100 | |||
| max. torque | nw/rpm | 1674/1400 | |||
| cylinder diameter | mm | 120 | |||
| stroke distance | mm | 147 | |||
| Trans-mission box | type | 14.7hr36432 | |||
| manufacturer | dana | ||||
| shift type | apc72 auto shift | ||||
| gear shift | f 4/ r 4 | ||||
| speed ratio(f/r) | 1 class | 5.814/5.814 | |||
| 2 class | 2.422/2.422 | ||||
| 3 class | 1.379/1.379 | ||||
| 4 class | 0.784/0.784 | ||||
| Spreader | model | manufacturer | max. capacity | ||
| 817 | elme | 45000kgs | |||
| rotation | service weight | suitability | |||
| 95 /- 185 | 8800kgs | 20ft-40ft loaded container | |||
| shift distance | |||||
| 800mm(l/r) | |||||
| Steering axle | type | inner turning angle （ each side ） | |||
| transward cylinder | 70 | ||||
| steering cylinder （ cyl. dia.x core diax stroke) | |||||
| 180x110x551mm | |||||
| Hydraulic system | pump | sweden (parker) pavc100b38r2a22 | |||
| pump | sweden (parker) pavc100b38r29a4a gp2and30as | ||||
| valve | initial valve | (parker)x104920 sweden | |||
| main steering valve | (parker)m400ls-012 | ||||
| balance valve set | (parker)91217414 | ||||
| steering device | (parker)hgb32128 | ||||
| others | the other kd parts are from sweden parker | ||||
| Electrical system | working handle | (parker)iqan-ll-4n5t | |||
| control-indi module | (parker)iqan-mdm | ||||
| length sensor | sl3010-pk1025mu/gs130 gemany | ||||
| angle sensor | 530260/414307 gemany | ||||
| presure sensor | (parker)5020003 | ||||
| others | the other kd parts are sweden | ||||
| Driving axle | manufacturer | kessler co | |||
| model | d102pl341/528-nlb8460 | ||||
| speed ratio | total 26.35 | ||||
| parking brake | forcipated brake | ||||
| service brake | oil-cooled multi-dis brake | ||||
