- Size: 8245x2500x3500
- Place of Origin: Shandong
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: ZZ3255N3846
- Weight: 12000.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

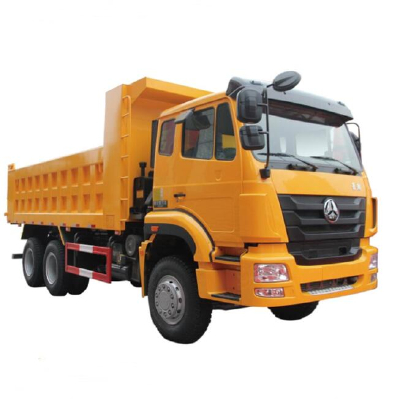

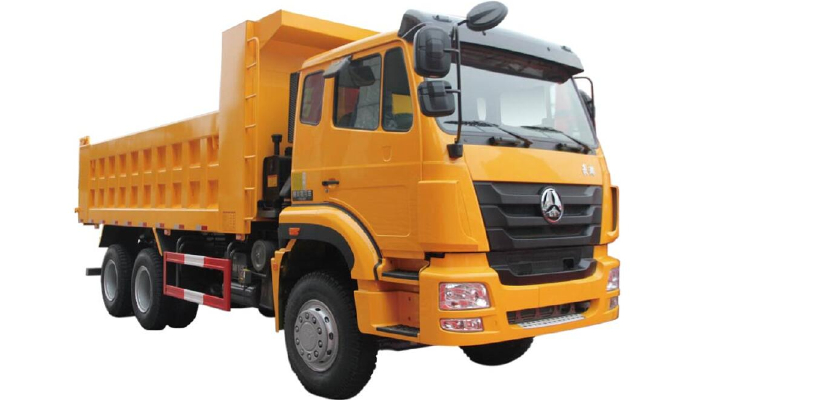

HOHAN 6x4/8x4 Dump Truck for sale, SINOTRUK HOHAN 6x4/8x4 Tipper Truck for sale
6*4
Overall dimension (length ×width ×height) (mm) | 8235*2496*3170(mm) | ||
Overhang(front/rear) (mm) | 1320/1700 | ||
Wheel base (mm) | 3825 1350 3825 1400 | ||
Max speed(km/h) | 75 | ||
Total weight(kg) | 25000 | ||
Curb weight(kg) | 12290 | ||
Engine
| Model | WD615.95 WD615.95E WD615.96 WD615.96E WD615.95C WD615.96C D12.34-30 D12.38-30 WD615.95NE WD615.96NE | |
Fuel type | Diesel | ||
Emission | EURO-2/EURO-3/EURO-4 | ||
Horsepower | 266HP/290HP/336HP/375HP/420HP | ||
Gear Box | Model | HW13710/HW15710 | |
Front axle | HF7 | ||
Rear axle | ST16 | ||
Tire | 12.00R20 | ||
Cab | H16/H17/H18 | ||
Fuel Tank Volume(L) | 300 | ||
Carriage Box Size(cbm) | 14-25 | ||
8*4
Weight Parameter | Complete Vehicle Kerb Mass(kg) | 14880 | |
Maximum authorized total mass (kg) | |||
Maximum authorized towed total mass(kg) | |||
Dimension Parameter | External Dimensions(mm) | Length | 10060,9960 |
Width | |||
Height | |||
wheelbase(mm) | 1800 3500 1350 | ||
Minimum Ground Clearance(mm) | |||
Performance Parameter | Maximum Speed(km/h) | 75 | |
Economical Speed(km/h) | |||
Maximum Gradeability(%) | |||
Turning diameter(m) | 22.5 | ||
Recommended Configuration | Engine | Engine Type | WD615.95E,WD615.96E,WD615.95C,WD615.96C |
Rated power(kW)/Rev(r/min) | 247,276,249,279 | ||
Maximum Torque(N*m)/Rev(r/min) | |||
Transmission | HW19710 | ||
Clutch(mm) | |||
Rear Axle | Type | AC16 | |
Speed Ratio | 5.45 | ||
Fuel Tank(L) | 300 | ||
Chassis Cross-section(mm) | |||
Suspension(Front,Back) | 13/12,11/11/12,11/11/-,4/4/- | ||
Tyre | 11.00-20,11.00R20,12.00-20 18PR,12.00R20 18PR | ||
