- Place of Origin: China
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: 9485TJZ

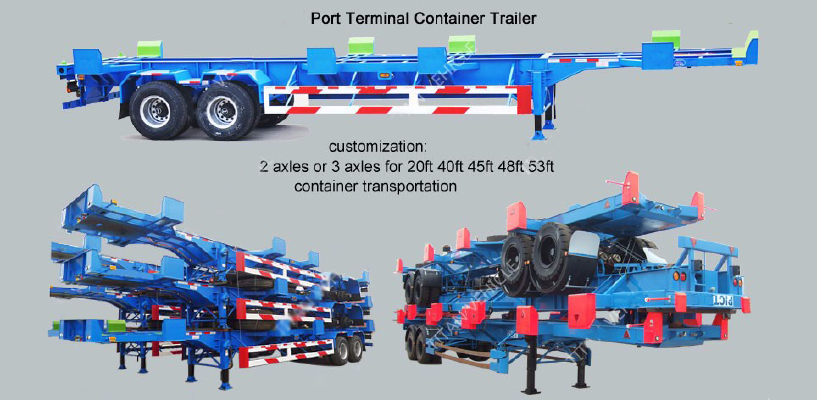

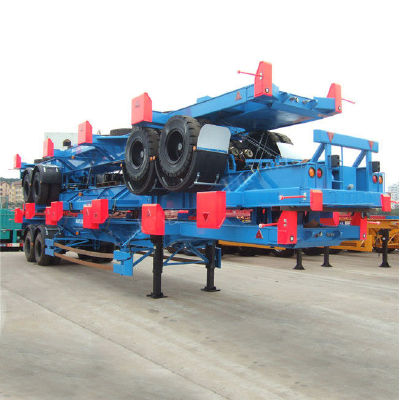

Type | Terminal Chassis | |
Model | 9485TJZ | |
Parameter | Overall Length | 14,709 mm±10mm(approximate) |
Overall Height | 1,700mm | |
Overall Width | 2,770mm (approximate) | |
Inner Length | 13,739 mm (approximate) | |
Inner Width | 2,420 mm (approximate) | |
Tare Weight(±3%) | Approximate 9,000 kg | |
Payload | 40,000kg | |
Traveling speed | 30Km/h | |
- | Beam | upper flange:16mm, middle:8mm, down:20mm |
OEM | landing gear | Manual operating heavy duty 28ton |
kingpin | 2.5”/3.5” | |
brake system | Big chamber on rear axle | |
ABS | No | |
suspension | Mechanical suspension with 12 leaf spring. | |
axle | 16Tx2; | |
tire | 12.00R22.5 tires equip 8 per chassis | |
rim | 8”x 20” Steel wheels, 10 bolts,, equip 8 per chassis | |
Electrical System | 12 volt lighting system with 7 way receptacle. | |
- Place of Origin: China
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: 9485TJZ
