- Size: 13990x2500x4000
- Place of Origin: Shandong
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: QDZ5291THB-37/4
- Weight: 38000.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

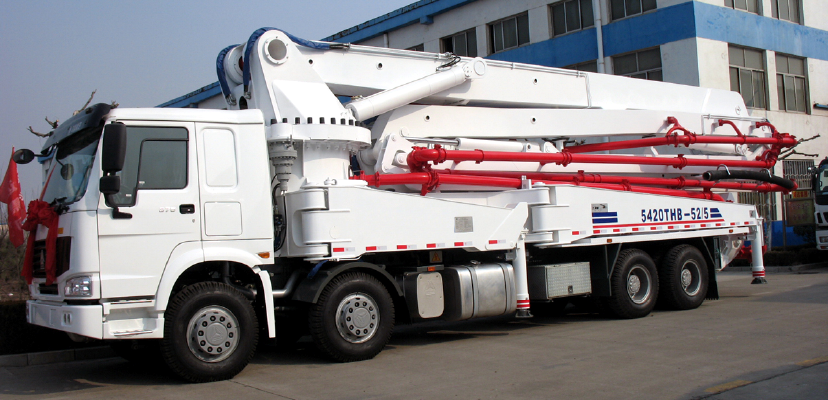

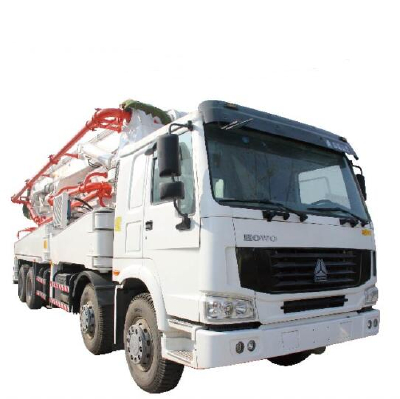

HOWO 28m-53m Concrete Pump Truck For sale
Items | Unit | Parameters | ||||
Main Technical Parameters in | Theoretical Pumping Capacity | m3/h | 125 | 125 | 125 | 125 |
Pumping Capacity Index | Mpa.m3/h | 586 | 586 | 586 | 586 | |
Theoretical Pumping Pressure | Mpa | 8.5 | 8.5 | 8.5 | 8.5 | |
Hopper Capacity | L | 700 | 700 | 700 | 700 | |
Feeding Height | mm | 1400 | 1400 | 1400 | 1400 | |
Distributing Valve Form | S-pipe valve | S-pipe valve | S-pipe valve | S-pipe valve | ||
Max. Distributing Radius | m | 43.7 | 43.7 | 47.8 | 47.8 | |
Max. Distributing Height | m | 47.7 | 47.7 | 51.8 | 51.8 | |
Max. Distributing Depth | m | 34.3 | 34.3 | 39.8 | 39.8 | |
Height of Distributing Boom When Stretched | mm | 9065 | 9065 | 9400 | 9400 | |
Distance between Front Landing Legs | mm | 9780 | 9780 | 10295 | 10295 | |
Distance between Rear Landing Legs | mm | 9860 | 9860 | 10650 | 10650 | |
Distance between Front and Rear Landing Legs | mm | 9470 | 9470 | 10310 | 10310 | |
Diameter of Conveying Pipe | mm | 125 | 125 | 125 | 125 | |
Length of Tail Hose | m | 3 | 3 | 3 | 3 | |
Rotary Range of Distributing Boom | 365° | 365° | 365° | 365° | ||
Number of Boom Sections | 5 | 5 | 5 | 5 | ||
Rotary Angle of Each Boom Section | ° | 91/180/180/180/270 | 91/180/180/180/270 | 90/180/180/180/270 | 90/180/180/180/270 | |
Close-control Distance | m | 33 | 33 | 33 | 33 | |
Remote-control Distance | m | 200 | 200 | 200 | 200 | |
Main Technical Parameters in | Max. Traveling Speed | km/h | 89 | 85 | 80 | 80 |
Min. Turning Radius | mm | 11900 | 12000 | 12500 | 12500 | |
Brake Distance | m | 10 | 10 | 10 | 10 | |
Approach Angle | ° | 16 | 16 | 16 | 16 | |
Departure Angle | ° | 11 | 11 | 11 | 11 | |
Chassis Model | ISUZU CYH51Y | HOWO ZZ5437S4667C SINOTRUCK Engine | HOWO ZZ5437S5067C1 HINO Engine | HOWO ZZ5437S5067C1 SINOTRUCK Engine | ||
Wheel Base between the First and the Second Axle | mm | 1850 | 1800 | 1800 | 1800 | |
Wheel Base between the Second and the Third Axle | mm | 4605 | 4600 | 5000 | 5000 | |
Wheel Base between the Third and the Fourth Axle | mm | 1310 | 1350 | 1350 | 1350 | |
Front Tread | mm | 2065 | 2022 | 2022 | 2022 | |
Rear Tread | mm | 1850 | 1830 | 1830 | 1830 | |
Max. Engine Power | kw | 287(2200r/min) | 275(2200r/min) | 259(2100r/min) | 275(2200r/min) | |
Horsepower | 390 | 375 | 352 | 375 | ||
Engine model | 6WF1D | WD615.96 | 6WF1D | WD615.96 | ||
Max Engine Torque | n.m | 1863(1100r/min) | 1500 /(1100~1600 r/min) | 1460(1100r/min) | 1500 /(1100~1600 r/min) | |
Max. Grade Ability | % | 37 | 37 | 37 | 37 | |
Fuel Consumption Limit | L/100km | 38 | 40 | 38 | 40 | |
Overall Dimension (L ×W× H) | mm | 13300×2500×4000 | 13300×2500×4000 | 13990×2500×4000 | 13990×2500×4000 | |
Full-load Total Weight | kg | 38000 | 40000 | 42000 | 42000 | |
