- Size: 11000*2500*3800
- Place of Origin: Shandong
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: ZZ5437V4667E1
- Weight: 20000.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

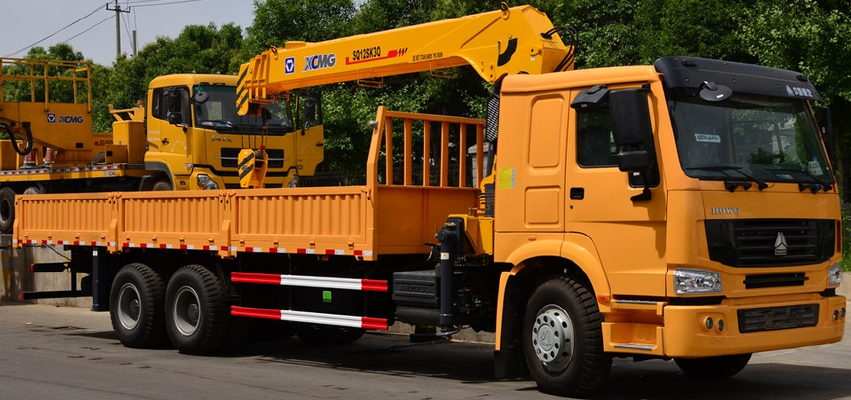

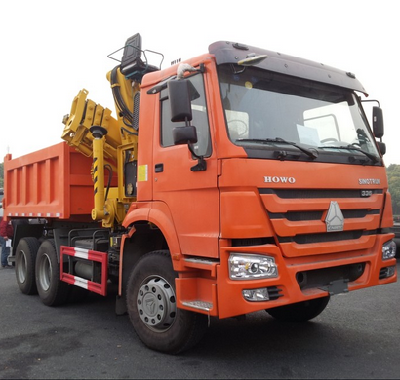

SINOTRUK HOWO 3.2-25T TRUCK MOUNTED CRANE FOR SALE
Products Technical Specification | ||
Product Name | Sinotruk HOWO 8*4 Truck with crane | |
Chassis Model | ZZ13317N | |
Fuel type | Diesel | |
Emission Standard | Euro 3 | |
Cabin | HW76,with A/C,sleeper | |
Whole Vehicle | Overall dimensions (L×W×H) | 11990*2500*3990 |
Cargo bady dimensions | 8000*2390*800 | |
Wheel base | 1800 4600 1350 | |
Front overhang | 1500 | |
Rear overhang | 2450 | |
Min. ground clearance | 550 | |
Weight data (kg) | G.V.W | 31000 |
Curb weight (chassis) | 15500 | |
Max payload | 25000-35000 | |
Whole vehicle | Max. speed (km/h) | 95 |
Max. slope of climb (%) | 30 | |
Engine | Model | WD615.95E |
Maximum power | 247kw / 336hp | |
Number of cylinders | 6 | |
Displacement (L) | 9.726 | |
Engine Manufacturer | China National Heavy Duty Truck Group Co., Ltd. | |
Gear box | Model | HW15710 |
Number of gears | 10 forward gears & 2 reverse | |
Axle | Front Load capacity (ton) | HF9 |
Rear Load capacity (ton) | HC16 | |
Suspension | Leaf spring, | 4/4/-,4/4/12,11/11/12,11/11/- |
Steering Wheel | left/right hand drive | LHD |
Brake system | Service brake | Air braking |
Electric device | Rated voltage | 24V |
Tyres & Quantity | 12.00R20 & 12 1 | |
Crane Description | ||
Brand | XCMG | |
Type | Straight Crane | |
Model | SQ14SK4Q | |
Max Lifting Capacity (kg) | 14000 | |
Maximum lift height (m) | 15.8 | |
Max Lifting Moment (t.m) | 35 | |
Max Oil Flow of Hydraulic System (L/min) | 63 | |
Max Pressure of Hydraulic System (MPa) | 26 | |
Oil Tank Capacity (L) | 160 | |
Rotation Angle (°) | All Rotation | |
Crane Weight (kg) | 4800 | |
Installation Space (mm) | 1300 | |
Working radius (m) | 2.5 / 5.0 / 8 / 11 / 13.2 / 15.8 | |
Lifting capacity (kg) | 14000 / 6000 / 3500 / 2300 / 1800 / 1200 | |
