- Size: 6110x2480x3718
- Place of Origin: Shandong,China
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: ZZ4187M3517
- Weight: 6880.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
SINOTRUK Hubei Huawin Special Vehicle Co.,LTD, located in Suizhou of Hubei province, is a branch factory of SINOTRUK.The annual production capacity is over 20,000.00 units all kinds of special trucks and 10,000.00 units trailers. With a tradition over 50 years in engineering industry, Huawin has accumulated rich experienced in manufacturing all kinds of special purpose vehicles and semi trailers.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

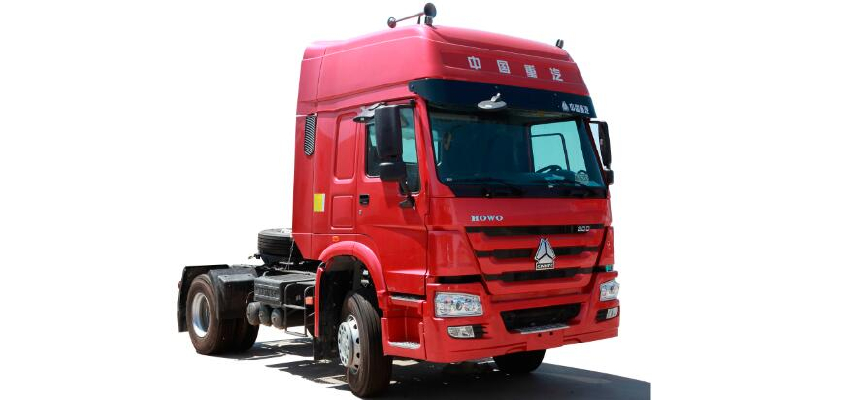

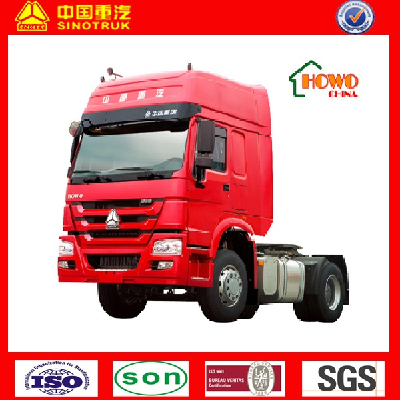

SINOTRUK HOWO 4*2 tractor truck
Dimension(Lx W xH) ( unloaded )( mm ) | 6110 ×2496× 3668 | ||||
Approaching angle/Departure angle ( ° ) | 1 6 / 42 | ||||
Overhang(front/rear) (mm) | 1500/1 110 | ||||
Wheel base (mm) | 3 500 | ||||
Max speed ( km/h ) | 102 | ||||
Curb weight ( kg ) | 7180 | ||||
Trailer total Weight ( kg ) | 31000 | ||||
Engine (Steyr technology, made in China) | Model | D12.38 380HP | |||
Fuel type | Diesel | ||||
Power, max ( kw/rpm ) | 27 9 /2 0 00 | ||||
Emission | EURO Ⅱ | ||||
Fuel tanker capacity | 400 | ||||
Transmission | Model | HW1 9 71 0 | |||
Brake system | Service brake | Dual circuit compressed air brake | |||
Parking brake | spring energy, compressed air operating on rear wheels | ||||
Steering system | Model | ZF8098 | |||
Front axle | HF7 Drum | ||||
Rear axle | ST16 | ||||
Tyre | 295/80R22.5 | ||||
Electrical system | Battery | 2X12V/165Ah | |||
Alternator | 28V-1500kw | ||||
Starter | 7.5Kw/24V | ||||
Cab | HOWO7 9 cab (Double bed, air conditioner) , all-steel forward control,55ºhydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | ||||
Welcome we come to our company website. We SINOTRUK are the biggest manufacturer of the trucks in China.
If you are looking for the trucks from SINOTRUK, please contact me according to the following ways, we will offer you our good price as our respect.
Contacting way:
Name: Jason Zhao
Moblie: 86 15215413593
Skype:xinmin.zhao66
Mail: sinotrukjason@163.com
whatsapp/viber: 86 15215413593
