- Size: 11000*2500*3800
- Place of Origin: Jinan
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: ZZ1317N4667C
- Weight: 35470.000 kg

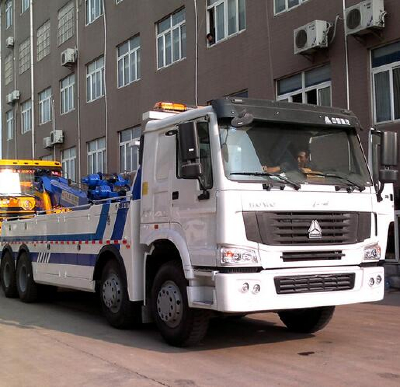

SINOTRUK WRECKER TRCUCK ZZ1317N4667C
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.
Wrecker Model | ST5381TQZCZ | ||
Chassis Model | SINOTRUK ZZ1317N4667C | ||
Engine Model | WD615.95E | ||
Power(kw/HP) | 247 | ||
Outline Dimension(L × W × H) mm | 11210 × 2496 × 3820 | ||
Wheel Base mm | 1800 4600 1350 | ||
Track （ front/rear ） mm | 2022/1830 2041/1830 | ||
No. of Tire | 12 | ||
Tire Specification | 12.00-20 | ||
Approach Angle/Departure Angle | 16 ° /16 ° | ||
Front Overhang/Rear Overhang mm | 1500/1960 | ||
Free loading | Reorganize and outfit quality Kg | 27870 | |
Boom | Max. lifting mass Kg | 50000 | |
Extension Stroke mm | 6000 | ||
Max. Lifting Height mm | 12500 | ||
Max. Inclination Angle | 60 ° | ||
Rotating Angle | 360 ° | ||
Range ofInclination Angle | 0~60 ° | ||
Underlift | Original Lifting Mass Kg | 25000 | |
Rating Lifting Mass Kg | 12500 | ||
Rating Lifting Mass Fully Extended Kg | 7800 | ||
Max. Effective Length mm | 3390 | ||
Extension Stroke mm | 1850 | ||
Range ofInclination Angle | -9 °～ 93 ° | ||
Folding Angle | 102 ° | ||
Outriggers | Longitudinal Span between Front Outrigger and Rear Outrigger (mm) | 7765 | |
Transverse Span of Front Outriggers (mm) | 6300 | ||
Transverse Span of Rear Outriggers | 4320 | ||
Rating Towing Mass Kg | 55000 | ||
Rating Pulling Power of Winch KN | 2 × 250 | ||
Length of Cable Wire m | 50 | ||
