- Size: 7400*2500*3300
- Place of Origin: Shandong
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: QDZ5160GXWZJ
- Weight: 16000.000 kg
SINOTRUK is the biggest and also the earliest heavy duty truck manufacture in China, specialized in the researching, developing and manufacturing of heavy trucks and related key parts. The products include truck chassis with GCW over 14 tons as well as tractor trucks with hauling capacity over 12 tons, tipper trucks, special trucks etc.
The truck products range from tractor trucks, cargo trucks, crane mounted trucks, garbage trucks, water trucks etc. And the trailer products range from flatbed trailers, tipper trailers, tank trailers, concrete mixer trailers etc.

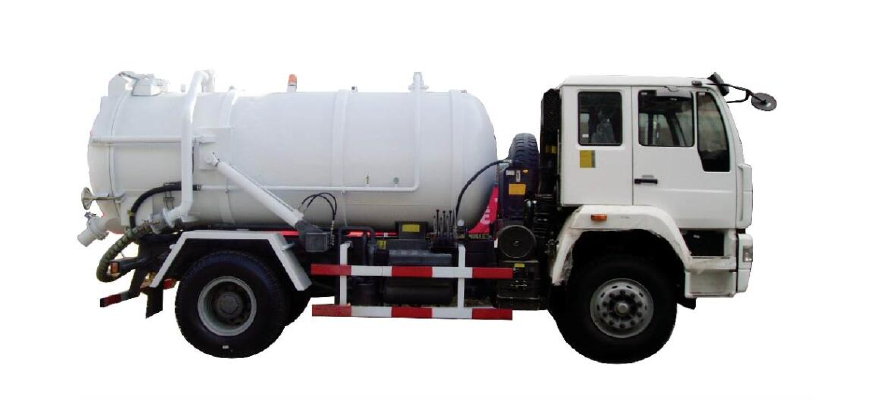

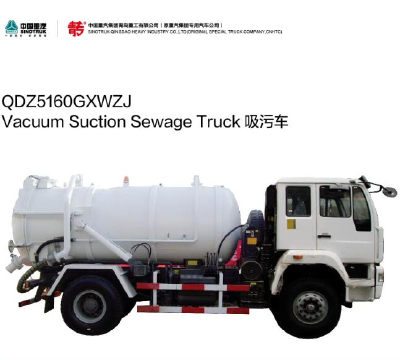

8m3 Howo Sewage Suction Truck 266HP
1. Model: QDZ5160GXWZJ
2. Capacity: 8m3
3. Suction depth: 8m
4. Time of Full Pump: 4-6min
5. Pumping speed: 3360l/h
6. Pump speed: 800r/min
7. Engine: CNHTC brand WD615.69, 266hp
8. Transmission: HW15710, 10 forward, 2 reverse
9. Whole truck dimension: 7790x2496x3170mm
10. Front axle: HF9
11. Rear axle: HC16
12. Cab: HW76 standard cab, 1 bunk
13. Rim/Tires: 12.00R20
14. Color: red, green, white, grey, blue, yellow
15. Fuel Tank: 300L
Welcome we come to our company website. We SINOTRUK are the biggest manufacturer of the trucks in China.
If you are looking for the trucks from SINOTRUK, please contact me according to the following ways, we will offer you our good price as our respect.
Contacting way:
Name: Jason Zhao
Moblie: 86 15215413593
Skype:xinmin.zhao66
Mail: sinotrukjason@163.com
whatsapp/viber: 86 15215413593
- Size: 7400*2500*3300
- Place of Origin: Shandong
- Brand Name: SINOTRUK QINGZHUAN
- Model Number: QDZ5160GXWZJ
- Weight: 16000.000 kg
| The vehicle configuration: | |||||||
| Cab | HW70 no sleeper, with A/C | ||||||
| Engine | Model | WD615.62 ,266HP EURO II 6 cylinder in-line, 4 stroke, inter-cooling, turbo-charging | |||||
| Net power(kw)/speed (r/min) | 196/2200 | ||||||
| Max torque(N.m)/speed (r/min) | 1350/1100-1600 | ||||||
| Steering sytem | ZF8098, hydraulic steering with power assistance(left hand drive) | ||||||
| Fuel tank | 300L | ||||||
| Tire | 12R22.5 Vacuum tires 7 units | ||||||
| Suction Tank parameter | |||||||
| Overall dimension of tank | φ1600x4000 | ||||||
| Effective volume of tank | 10m3 | ||||||
| diameter of suction tube | φ100mm | ||||||
| suction depth | ≥8m | ||||||
| opening angle of rear tank door | 60° | ||||||
| Tank lifting angle | 30° | ||||||
| Vacuum pump | type | vane pump imported from Italy | |||||
| pumping speed | 318m3/h | ||||||
| rated speed | 1300rpm | ||||||
| Max vacuum | absolute value:10 Percentage:90% | ||||||
