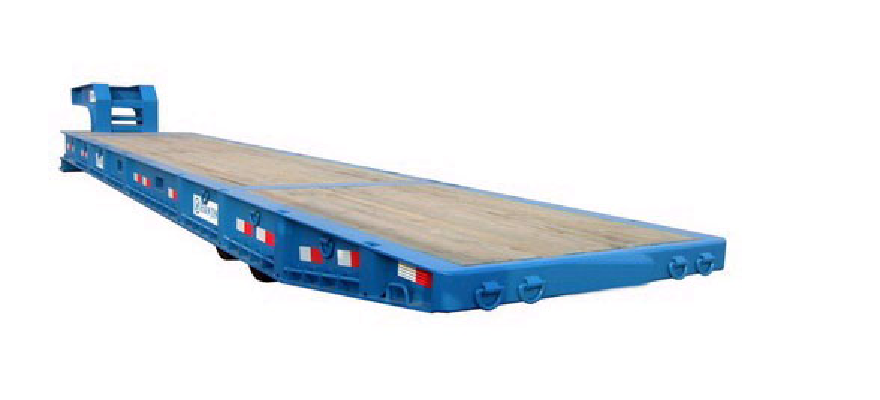

Wharf tug truck trailer/Port Terminal Container Trailer

Wharf tug truck trailer/Port Terminal Container Trailer

  • Min.Order Quantity: 1 Set
  • Supply Ability: 500 Sets per Month
  • Port: Any China port
  • Payment Terms: L/C,T/T,Other
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:1980-09-04
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Place of Origin:  China
  • Brand Name:  SINOTRUK QINGZHUAN
  • Model Number:  9485TJZ

Specifications

It is designed for transporting of 1x40' or 20' containers or loose cargo or big knocked-down goods on RoRo vessele or in port.

1.Dimension and weight:

 Overall Length: 14,360 mm,include 240mm for safety hook

 Platform Length: 12,212 mm

 Platform Width: 2,500 mm (adjustable according with your request)

 Platform Height: About 750mm @ unload

 Axle spacer (from front surface): 10460 mm 800 mm

 Distance between fork lift pockets: 2,020 mm

Tare Weight (Tolerance ±3%): Approximate 10,000 kg

 Payload: 80-100Tons

2.Steel Material:

High strength low alloy steel with 350 MPa yield strength is used for welded I-beam and fabricated parts.

 3.Running Gear System:

(1).2 rock arms lowered box construction

(2).4 axles 140x140,φ100/80mm

(3).8 steel reinforced solid rubber tires 22x14x16

 4.Decking:

(1).40 mm thickness wood


  • Place of Origin:  China
  • Brand Name:  SINOTRUK QINGZHUAN
  • Model Number:  9485TJZ
